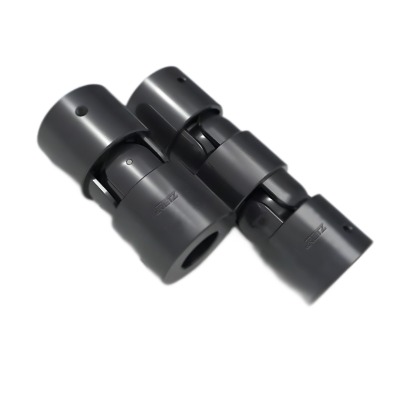

品牌：retz/我們一直致力于機械設備和測控領域的持續創新,始于2005……進口萬向聯軸器是屬于撓性聯軸器,能夠傳遞運動和轉矩,同時具備不一樣程度上的軸向、角向補償性及徑向。萬向聯軸器是用螺栓及自鎖螺母把兩端的法蘭聯接在其他機械構件上,其轉達矩是通過法蘭端面鍵及法蘭間的磨擦力來傳遞。螺栓只能從與聯軸器相配的法蘭側放入,螺母由法蘭側擰緊,其螺栓的機械性能符合標準,螺母的機械性能應符合規定。萬向聯軸器在生產過程中起著非常重要的作用因而被廣泛應用,萬向聯軸器是聯軸器的一個種類,而且有很多的優點。萬向軸的結構嚴謹緊湊,因此萬向聯軸器的運載能力就非常強,而且安 全可靠

進口萬向聯軸器 萬向節產品用途 product use

1.適用于各種通用機械場合,銷釘方塊結構最 高 使用1000轉/分,滾針軸承結構 最 高 轉速可達4000轉/分,建議實際使用轉速在最 高 轉速的50％以內使用 it is applicable

to all kinds of general mechanical occasions. the maximum speed of pin block

structure can be 1000 rpm,***the maximum speed of needle bearing structure

can be 4000 rpm. it is recommended that the actual speed be used within 50％ of

the maximum speed

2.適用于聯結空間同一平面上兩軸夾角每節極限轉動角度為45度,允許使用角度30度以內 applicable to

the included angle of two shafts on the same plane of the connecting space. the

limit rotation angle of each section is 45 degrees,***the allowable angle is

within 30 degrees

3.所提供的快速鎖緊裝置僅有公差為h7的成品孔,帶標準的鍵槽或六角孔可選,可非標定制不同安 裝結構 the

provided quick locking device only has finished hole with tolerance of h7, with

standard keyway***hexagonal hole optional,***different installation

structures can be customized non-standard

4.適用于聯結空間同一平面上兩軸軸線夾角≤30°的傳動 applicable to

the transmission with the included angle of two axes on the same plane of the

connecting space ≤ 30 °

5.傳遞公稱轉矩11.2-1120n.m.（可定制更大扭矩）transmit nominal

torque 11.2-1120 n.m. (larger torque can be customized)

6.常規鍵槽頂絲孔,可按照要求定制不同孔型和固定方式

conventional keyway jackscrew hole can be customized with different hole types

and fixing methods according to requirements

7.允許兩軸間夾角在限定的范圍內隨工作需要而變動 the

included angle between the two shafts is allowed to change with the work needs

within the limited range

進口萬向聯軸器 萬向節結構特點 structural

features

產品材質： 常規40cr高 碳鋼,可定制304 316 等特殊材質 product

material: conventional 40cr high carbon steel, customized 304 316***other

special materials

1.萬向節銷釘、襯套和方塊體采用優質合金鋼40cr、40crni、20crmo或者20crmnvb等制造 universal joint

pins, bushings***blocks are made of high-quality alloy steel 40cr, 40crni,

20crmo***20crmnvb

2.萬向節所有零件均可以用sus304、sus316不銹鋼定制 all parts of

universal joint can be customized with sus304***sus316 stainless steel

3.萬向節兩軸套可以采用高 強度鋁合金定制,或者絕緣尼龍定制

universal joint two shaft sleeves can be customized with high-strength aluminum

alloy***insulating nylon

4.下表中扭矩范圍為滑動軸承形式,帶滾針軸承扭矩為滑動軸承的1/2

the torque range in the following table is in the form of sliding bearing, and

the torque of needle bearing is 1/2 of that of sliding bearing

5.兩端聯接方式可定制成內花鍵軸孔,花鍵軸,光軸加銷孔,光軸加鍵槽,四方軸,六方軸,小型法蘭等形式,具體參數請來電咨詢 the

connection mode of both ends can be customized into internal spline shaft hole,

spline shaft, optical shaft plus pin hole, optical shaft plus keyway, square

shaft, hexagonal shaft, small flange, etc. for specific parameters, please call

retz（瑞茨）萬向聯軸器、萬向節產品涵蓋了進口雙節,單節精密萬向節、進口雙節,單節小型萬向節、進口小型十字軸萬向聯軸器(雙節,單節)、進口球鉸式萬向節聯軸器(雙節,單節)、進口可拆式萬向節聯軸器(雙節,單節)、進口球叉式萬向節聯軸器、進口可伸縮小型十字軸萬向聯軸器、進口伸縮型萬向聯軸器
